Micro vibration Technology

微振動技術示意圖

Our Advantages

  • ✓ Support for drug device combination product development, capable of integrating product development and regulatory validation processes.
  • ✓ Customized electrically actuated modules, possessing independent development capabilities, and micro mesh plate modules of various materials to meet differentiated product needs

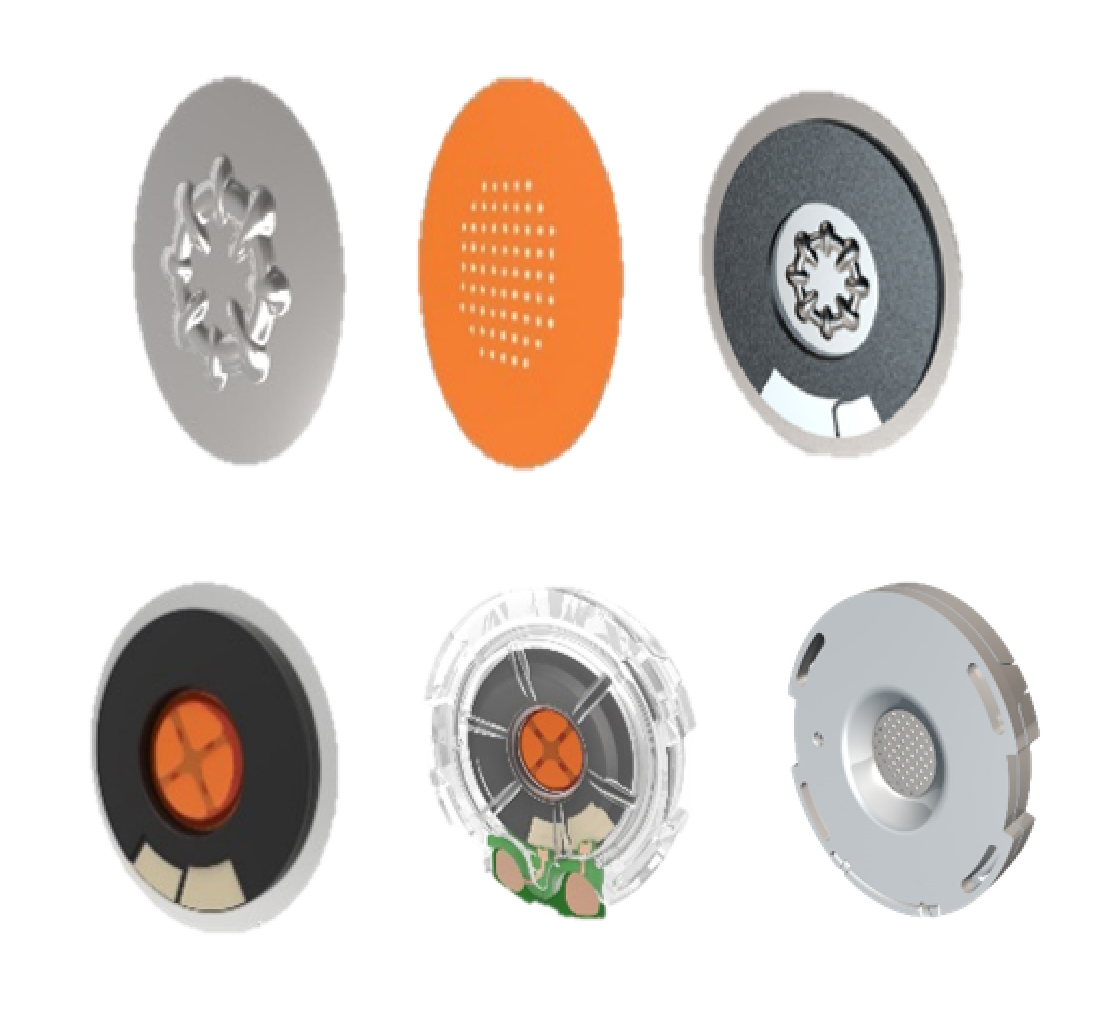

    Customized modules

    電致動軟霧模組

    Customized module fixtures

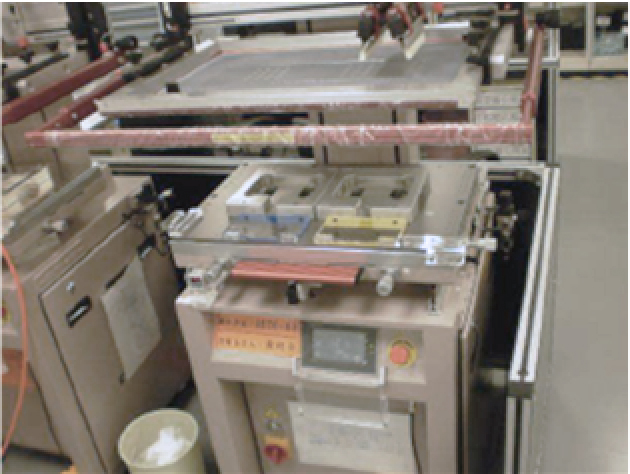

    Adhesive Screen Printing

    Adhesive Screen Printing

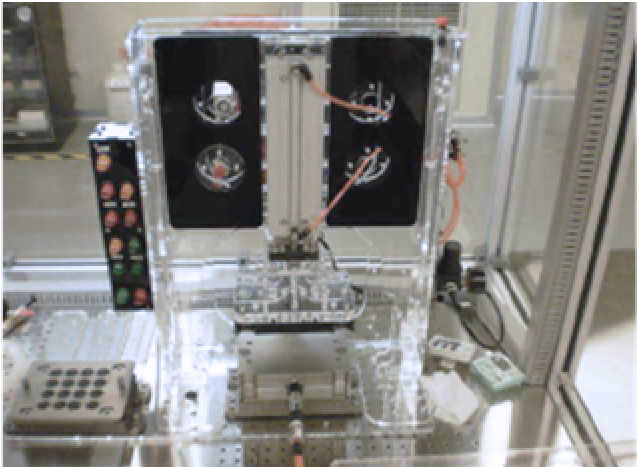

    Flip Rotate Lamination

    Flip Rotate Lamination

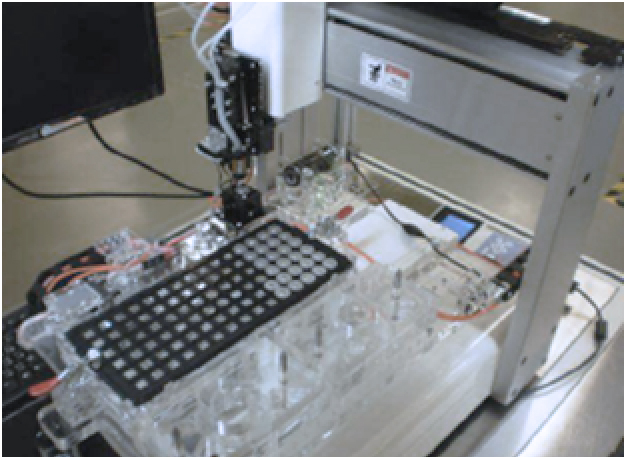

    PZT and Stiffener Pick and Place

    PZT and Stiffener
    Pick and Place

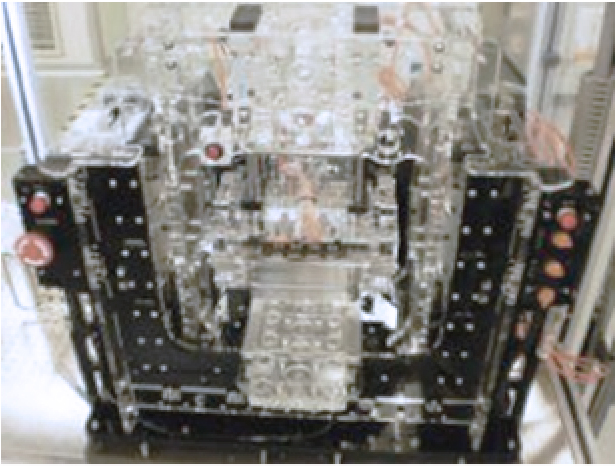

    Module Lamination

    Module Lamination

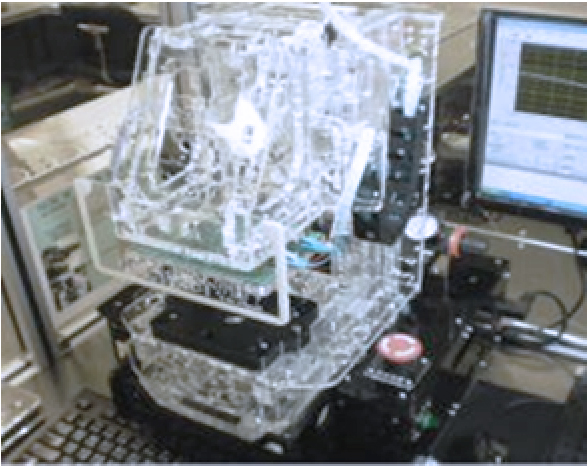

    Module Testing

    Module Testing

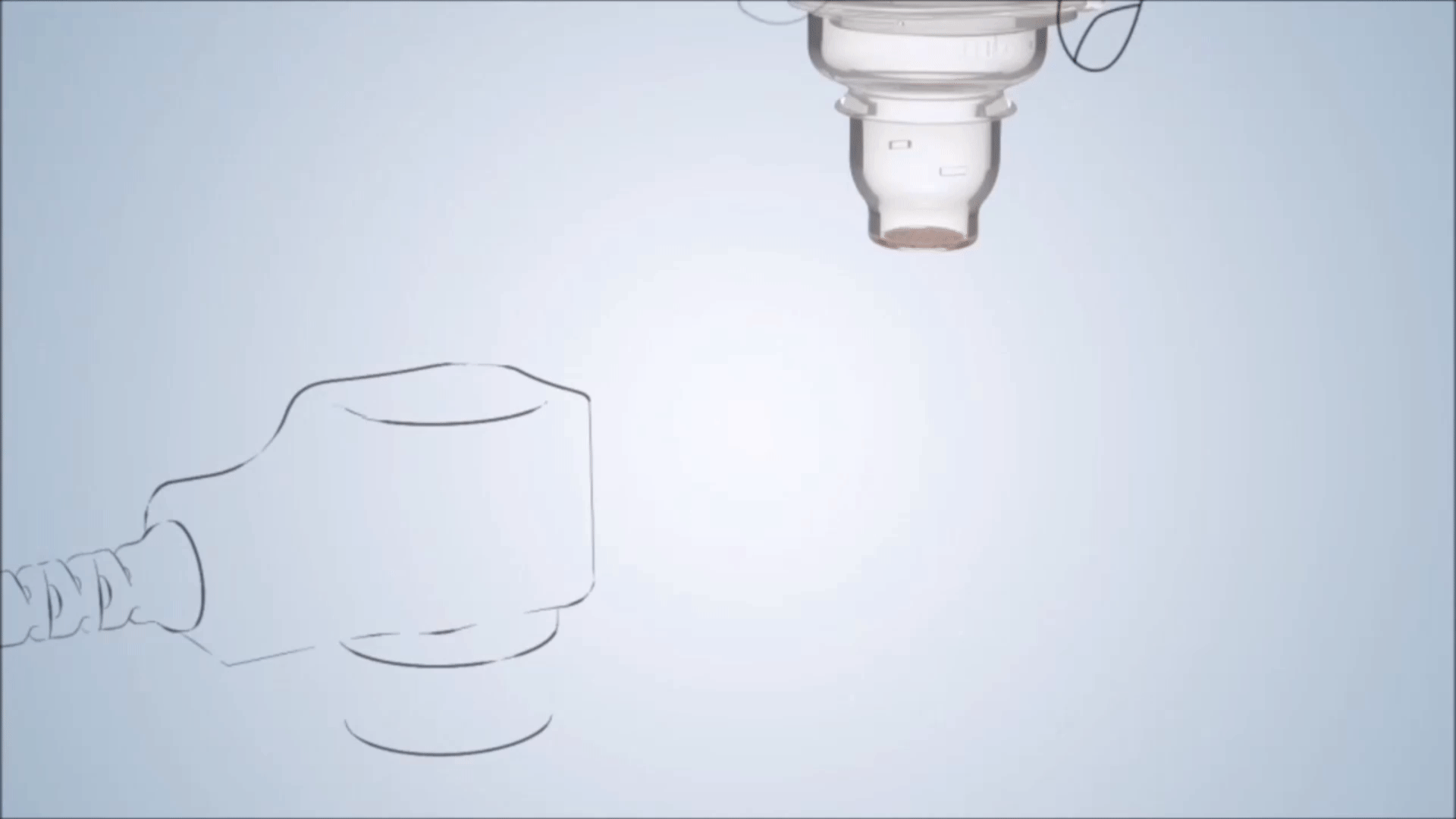

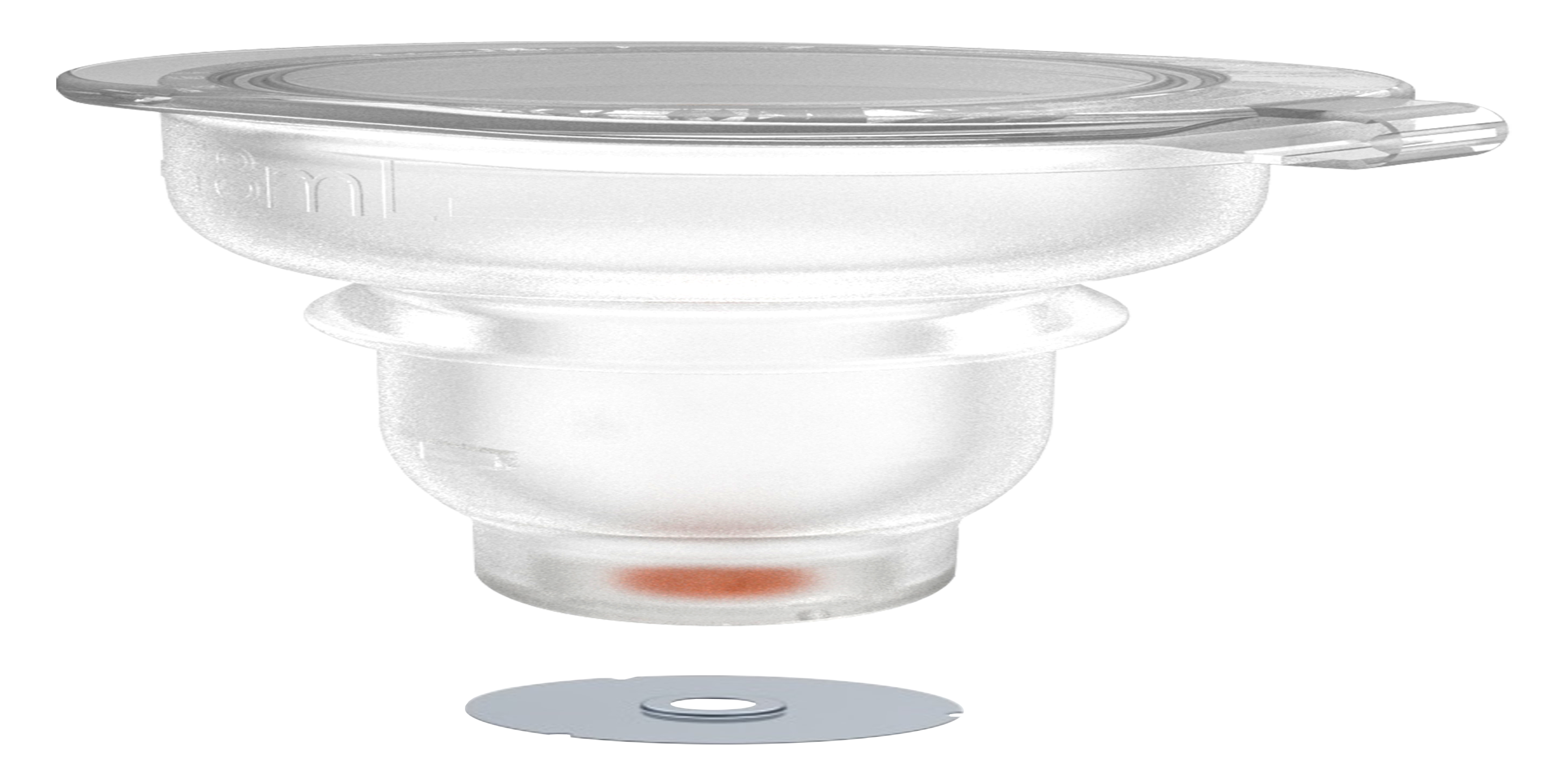

  • ✓ Pioneered separable atomization technology, separating the actuator module from the medication cup to reduce the risk of cross-contamination.
    客製化模組圖1
    客製化模組圖2

Technical Solutions

+ Active vibration technology

Utilizes high-performance piezoelectric ceramics (PZT) to drive the microporous plate, achieving high speed vibrations of up to 120,000 times per second, combining high quality with low noise and low energy consumption.

+ Electrically actuated highly efficient atomization

Precisely designs vibration frequencies for liquids with different physical properties (such as liquid medications with different viscosity coefficients) to create optimized performance.

+ Dual air chamber full cover sealing

Encapsulates the core module with biocompatible materials to prevent damage from external pressure or chemicals, avoiding structural resonance being affected by casing pressure contacts.



Customization for high viscosity modules

Provides specialized module design for high viscosity solutions (such as 3cP ~ 5cP). Through customized adjustments, it solves the problem of traditional modules being unable to atomize effectively, ensuring fine drug particles and stable output.

Viscosity and Particle Size Testing

Viscosity Average particle size(μm)
0.9% Isotonic saline 5.36
3 cP 5.03
4 cP 4.16
5 cP 4.15
Unmodified Module
Customized Module (5 cP Solution)

Application

Biotechnology and Medical

Mesh nebulizers/atomizers.

Beauty Equipment

Moisturizing sprays, introducers/massagers, moisturizing sprayers (such as facial misters, nano sprayers, etc.)

Precision Industry

Micro motors, micro piezoelectric actuated pumps, microfluidic control modules, etc.



Service Process

Technical team consultation
›
Processing material and process evaluation
›
Vibration frequency design and simulation
›
Sample production
›
Mass production manufacturing

Start your micro vibration project
